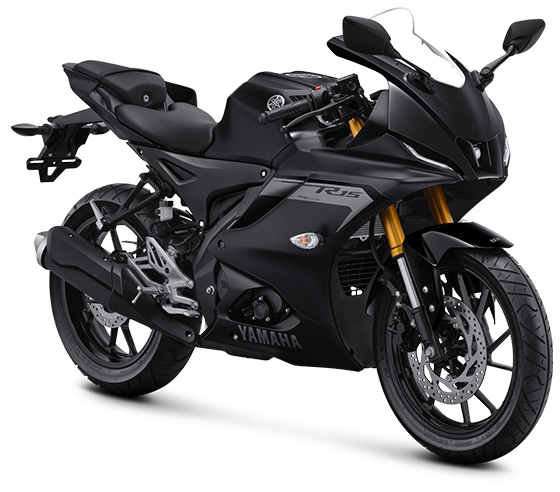

All New R15 Connected
All New R15 Connected
Rp42.050.000
%
*perhitungan angsuran adalah estimasi
**harga dan angsuran dapat berubah sewaktu-waktu
MODEL SPESIFICATIONS
| Mesin | |
|---|---|
| Tipe Mesin | : Liquid Cooled, 4-Stroke, SOHC, 4 Valve, VVA |
| Jumlah/Posisi Silinder | : Single Cylinder |
| Isi Silinder (CC) | : 155.09 cc |
| Diameter x Langkah | : 58.0 x 58.7 mm |
| Perbandingan Kompresi | : 11.6 ± 0.4 : 1 |
| Daya Maksimum | : 14.2 kW / 10000 rpm |
| Torsi Maksimum | : 14.7 Nm / 8500 rpm |
| Sistem Starter | : Elektrik Starter |
| Sistem Pelumasan | : Wet Sump |
| Kapasitas Oli Mesin | : Total =1.15L; Berkala = 0.85L; Ganti Filter Oli = 0.95L L |
| Sistem Bahan Bakar | : Fuel Injection |
| Tipe Kopling | : Multi Wet Clutch |
| Tipe Transmisi | : Manual |
| Pola Pengoperasian Transmisi | : 1-N-2-3-4-5-6 |
| Rangka | |
| Tipe Rangka | : Deltabox |
| Suspensi Depan | : Telescopic Fork (Inverted) |
| Suspensi Belakang | : Link Monoshock |
| Ban Depan | : 100/80-17M/C 52P |
| Ban Belakang | : 140/70-17M/C 66S |
| Rem Depan | : Disc Brake |
| Rem Belakang | : Disc Brake |
| Dimensi | |
| P X L X T | : 1990 x 725 x 1135 mm |
| Jarak Sumbu Roda | : 1325 mm |
| Jarak Terendah Ke Tanah | : 170 mm |
| Tinggi Tempat Duduk | : 815 mm |
| Berat Isi | : 137 Kg (All New R15), 140 Kg (All New R15M) |
| Kapasitas Tangki Bensin | : 11 L |
| Kelistrikan | |
| Sistem Pengapian | : TCI |
| Battery | : GTZ4V/YTZ4V (All New R15), YTZ6V (All New R15M) |
| Tipe Busi | : MR8E9 |
